Minnesota Loader Parts - Loaders are versatile machines used in a variety of industries. They specialize in moving and loading materials including snow, raw minerals, asphalt, gravel, demolition debris, rock, woodchips, sand, snow, dirt, grain, feed and the like. Loaders transport material into rail cars, dump trucks, feed-hoppers and conveyor belts. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. The loader assembly may consist of a permanently mounted or removable attachment options. The bucket portion of the loader can be interchangeable with other tools. Forks can be mounted to lift shipping containers or pallets. The machine can also use a clamshell bucket that is hydraulically operated for scraper and light dozer applications. Various devices including a bale grappler can take care of large bales of straw or hay.
Font loaders refer to loaders that feature a front bucket. Smaller loader tractors can be outfitted with a tiny backhoe and are called JCBs, loader backhoes or backhoe loaders. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as other models such as an excavator or a backhoe due to its’ inefficiency of being unable to dig past its’ wheel level. Loader bucket capacity is in the range of 0.5 cubic meters to thirty-six cubic meters. Front loader bucket capacity is greater in comparison to a backhoe loader.
There are loader models available with tracks or others that feature wheels, depending on which application you are going to use it for. Track models are popular in construction sites and areas where rubber wheels may be prone to damage from sharp items. Tracks feature more traction compared to wheels but wheels showcase better mobility and speed while offering less damage to paved areas. Within construction locations, loaders are used to materials and digging tools within the job site.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
There are special high-tip buckets available for lightweight materials including peat, woodchips and light gravel, making it easier to empty the bucket while lifted at full height. These machines have enjoyed greater popularity over the past twenty years in urban engineering applications and earthmoving works. Different duties can be handled by a variety loader model sizes.
Sizeable loaders do not have the same automotive steering features unlike regular tractors with a backhoe or front bucket. These loaders steer by way of a hydraulically actuated pivot point that is situated between the rear and front axles, known as articulated steering. This model allows most of the weight to be carried by the machine thanks to the solid front axle. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. There is higher risk of the machine turning over towards the wide side after the heavy load is raised and the machine is turned to the side.

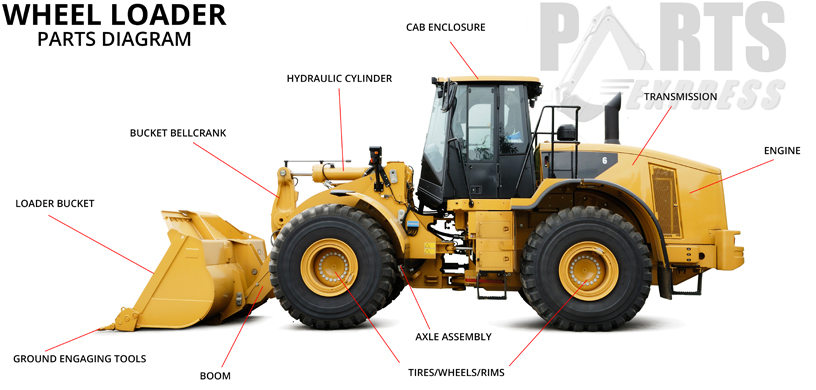

Some of the key components include hydraulic items such as pumps, motors and valves; transmission items including the gearbox, axles, pumps, motors, wheels or tracks etc., and the engine that is mostly diesel.
The engine is responsible for controlling the hydraulics and the transmission which enables the front attachments such as the bucket, forks, sweeper etc. to move. This equipment is utilized to handle sand, gravel, manure and similar items within model-specific lifting specifications.
Wheel Loaders
The initial wheel loader was created from a tractor with a rear-wheel drive. Today’s wheel loader models consist of articulated rear and front wheels featuring the same dimensions.
Armored Wheel Loaders
Various military applications rely on armored Caterpillar 966 wheel loaders to conduct combat engineering and construction missions. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. Armor plating is placed on the machine to offer protection from Molotov cocktails, rocks, stones and gunfire. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. There are remote controlled wheel loaders utilized by certain police and military organizations.
Tractor Front Loaders
Tractors with 50 to 200 horsepower may use a loader addition. Tractor loaders have been manufactured to complete many farming activities. These tractor loaders can complete a variety of jobs and are more economical than telehandler equipment. Tractor loaders can utilize a variety of attachments such as hydraulic grabs and spikes to facilitate bale handling and silage applications. Bucket attachments are often used for agricultural jobs and pallet transportation can be facilitated with fork attachments.
Compact Front End Loaders
FELs or front-end loaders are popular additions to farm tractors and compact utility tractors or CUTs. Smaller, compact models range in horsepower from 18 to 50, an ideal amount of power for groundskeeping and landscaping jobs. There are semi-curved, curved arm and regular dogleg models available for different applications.
There are CUTs available with front-end loaders that can complete a wide variety of tasks, especially when they utilize different attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. A quick coupler or quick attach system or QA enables attachments such as bale spears, pallet forks and buckets to be added or removed with ease.
A front-end loader known as an LHD or load-haul-dump unite is helpful in compact mining situations. It relies on many different buckets and operates with electric or diesel engines.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. This machine has lift arms that are capable of attaching to many tools. Mechanically synchronizing on each side, these machines generally have four wheels. The right side wheels are able to be driven independently from the left side wheels. Usually, the wheels keep a straight, fixed body alignment without separate steering options.
Differential steering is responsible for conducting turning maneuvers. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. Torsional forces due to the dragging motion are prevented thanks to the strong wheels and rigid frame. It is easy for soft ground and fragile road surfaces to become destroyed by the immense ground friction caused by tracked vehicles and skid steers.
Low ground friction is converted by specially designed wheels. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. This machine is ideal for jobs that need agile and compact equipment. Some models use tracks in place of wheels and are called multi-terrain loaders.
In skid loaders, the lift arms are found beside the operator and have pivot points situated behind the driver’s shoulders. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Modern models nowadays feature enclosed cabs and extra features to ensure operator safety. Similar to other front loaders, it can transport material from one location to the next via carrying material in the bucket to deposit into a trailer or truck or pushing it across the ground.
History of Tracked Loaders
A tracked loader utilizes a chassis with a loader for digging items and loading materials. There have been three main design evolutions for this machine, each one improving versatility and efficiency. Being able to complete a large variety of tasks, this equipment is a popular add on to many existing fleets.
Initial tracked loaders were made from track tractors and had declined ability to dig into hard ground, similar to bulldozers of the same era. Tracked loaders were used mainly for moving stockpiled materials into rail cars and loading trucks.
Everything changed with the addition of hydraulic integration from providing power to the loader linkages and increasing overall power. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. The initial designs placed the engine weight at the front area of the tracks other heavy loader items. This situation placed too much wear and tear on the front idler wheels and the undercarriage. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader is a machine that features a swinging boom and a rigid frame. The boom can travel 180 degrees or farther. These machines are used mainly in the railroad industry for laying rail. There are a variety of attachments including buckets, forks and magnets that can be added on for more diverse applications. Different agricultural jobs utilize smaller models. Swingloaders are useful in limited space applications. Capable of lifting and depositing on all sides, this loader is popular for many different jobs.
